Introduction to Data Warehousing

Database Systems - MTech First Semester

Topics Covered

📊 OLTP vs OLAP Systems
🎯 Characteristics of Data Warehousing
💡 Need for Data Warehousing
🏗️ Warehouse Architecture (2-tier & 3-tier)
📦 Staging Area & Data Marts
📋 Metadata Management

Dr. Mohsin Dar
Assistant Professor, Cloud & Software Operations Cluster
UPES University

What is Data Warehousing?

Definition

A Data Warehouse is a subject-oriented, integrated, time-variant, and non-volatile collection of data in support of management's decision-making process.

Key Characteristics

Subject-Oriented: Organized around major subjects (customers, products, sales) rather than applications
Integrated: Data from multiple heterogeneous sources is consolidated and made consistent
Time-Variant: Historical data is maintained to enable trend analysis and forecasting
Non-Volatile: Data is stable and doesn't change once entered; only loaded and accessed

Purpose: Enable business intelligence, reporting, and advanced analytics for strategic decision-making

OLTP vs OLAP

Understanding the Fundamental Difference

Aspect	OLTP (Online Transaction Processing)	OLAP (Online Analytical Processing)
Purpose	Day-to-day operations and transactions	Analysis, reporting, and decision support
Data Source	Operational data (current)	Consolidated data from multiple sources
Query Type	Simple, standardized queries	Complex queries with aggregations
Operations	INSERT, UPDATE, DELETE	SELECT (mostly read-only)
Response Time	Milliseconds	Seconds to minutes
Users	Thousands (operational staff)	Hundreds (analysts, managers)

OLTP vs OLAP (Continued)

Aspect	OLTP	OLAP
Data Volume	Gigabytes (GB)	Terabytes (TB) to Petabytes (PB)
Database Design	Normalized (3NF, BCNF)	Denormalized (Star/Snowflake schema)
History	Current data (60-90 days)	Historical data (years)
Examples	Banking, E-commerce, Inventory	Business Intelligence, Data Mining, Forecasting
Backup	Regular backups critical	Periodic loading and refreshing

                    Key Insight: OLTP focuses on transaction speed and data integrity, while OLAP focuses on query performance and analytical capabilities.


Need for Data Warehousing

Why Organizations Need Data Warehouses

Business Challenges

Data scattered across multiple systems
Inconsistent data formats
Poor data quality and redundancy
Lack of historical perspective

Decision-Making Needs

Strategic planning requires insights
Trend analysis and forecasting
Customer behavior analysis
Performance monitoring

Key Benefits

Consolidated View: Single source of truth for the entire organization
Improved Query Performance: Optimized for complex analytical queries
Historical Intelligence: Maintain years of data for trend analysis
Data Quality: Cleansed, validated, and standardized data
Enhanced Decision Making: Better insights lead to informed decisions
Separation of Concerns: Analytics don't impact operational systems

Data Warehouse Architecture

Building Blocks of a Data Warehouse

Core Components

Data Sources: Operational databases, external data, flat files, APIs
ETL Process: Extract, Transform, Load pipeline
Data Storage: Central repository with optimized schema
Metadata Repository: Data about data
Access Tools: Reporting, querying, and analytics interfaces

Architecture Types

Data warehouses can be implemented in different architectural patterns:

2-Tier Architecture: Simplified structure with minimal layers
3-Tier Architecture: Standard industry approach with clear separation

Next slides will explore each architecture in detail...

2-Tier Architecture

Tier 1: Data Sources

Operational Databases
External Sources
Flat Files

↓

Tier 2: Data Warehouse

ETL Process
Data Storage
Query & Analysis Tools

Characteristics

Direct Connection: Source systems directly connected to warehouse
Simplified Structure: Fewer layers and components
Faster Implementation: Quicker to set up and deploy

Advantages

Lower initial cost and complexity
Easier to maintain with fewer moving parts
Suitable for small to medium organizations

Disadvantages

Limited scalability for large enterprises
Performance issues with complex transformations
Less flexibility in data processing

3-Tier Architecture

Industry Standard Approach

Bottom Tier

Data Sources
ETL Tools
Data Acquisition

↓

Middle Tier

Data Warehouse Server
OLAP Server
Data Storage

↓

Top Tier

Client Tools
Reporting
Analytics & BI

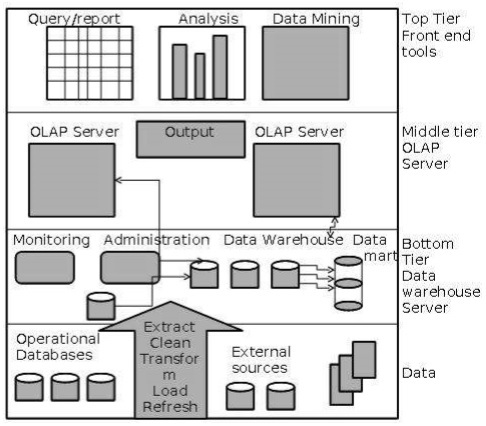

Figure: 3-Tier Data Warehouse Architecture

Tier Descriptions

Bottom Tier (Data Sources): Consists of data acquisition from various sources, ETL processes, and staging area
Middle Tier (Data Warehouse Server): Central repository, OLAP engine, and metadata management
Top Tier (Client Layer): Front-end tools for querying, reporting, and data visualization

3-Tier Architecture - Benefits

Advantages

Scalability: Each tier can be scaled independently based on needs
Performance: OLAP server optimizes query performance
Flexibility: Can support multiple data sources and client tools
Maintainability: Clear separation of concerns makes updates easier
Security: Better security implementation at each layer
Platform Independence: Different technologies at different tiers

Disadvantages

Higher initial cost and complexity
Requires more skilled personnel to manage
Longer implementation time

Industry Standard: 3-tier architecture is the most commonly used approach in enterprise data warehousing due to its robustness and scalability.

Staging Area

Definition

A Staging Area is an intermediate storage area between data sources and the data warehouse where data is temporarily held for transformation and quality checks.

Purpose and Functions

Data Consolidation: Collect data from multiple heterogeneous sources
Data Transformation: Clean, validate, and transform data before loading
Data Quality Assurance: Identify and fix data quality issues
Change Detection: Identify new, modified, or deleted records
Error Handling: Isolate problematic records for review

Key Characteristics

Temporary storage - not for querying or reporting
Can be cleared after successful load to warehouse
May contain raw and transformed versions of data
Supports incremental and full data loads

Best Practice: A well-designed staging area improves ETL efficiency and data quality significantly.

Data Marts

Definition

A Data Mart is a subset of a data warehouse focused on a specific business line, department, or subject area.

Types of Data Marts

Dependent Data Marts

Created from central data warehouse
Ensures consistency
Top-down approach

Independent Data Marts

Standalone systems
Direct from source systems
Bottom-up approach

Benefits of Data Marts

Focused Data: Contains only relevant data for specific users
Improved Performance: Smaller size leads to faster queries
Cost-Effective: Less expensive to implement than full warehouse
User-Specific: Customized to departmental needs
Quick Deployment: Faster to implement and deliver value

Common Examples

Sales Data Mart, Marketing Data Mart, Finance Data Mart, HR Data Mart

Metadata in Data Warehousing

Definition

Metadata is "data about data" - information that describes the data stored in the warehouse, its structure, meaning, and usage.

Types of Metadata

1. Technical Metadata

Database schemas, table structures, data types
Source system details and mappings
ETL job definitions and schedules
Data transformation rules and logic

2. Business Metadata

Business definitions and terminology
Data ownership and stewardship information
Business rules and validation criteria
Report definitions and KPI calculations

3. Operational Metadata

Data lineage and audit trails
Load statistics and job execution history
Data quality metrics and error logs
Usage statistics and access patterns

Importance of Metadata

Why Metadata is Critical

Data Discovery: Helps users find and understand available data
Data Lineage: Tracks data from source to destination
Impact Analysis: Understand effects of changes to data or processes
Data Governance: Supports compliance and regulatory requirements
ETL Management: Documents transformation logic and dependencies
Quality Assurance: Helps identify and resolve data quality issues

Metadata Management System

A centralized repository that stores, manages, and provides access to all metadata. It serves as a catalog for the data warehouse.

Key Components

Metadata repository database
Metadata extraction and loading tools
Metadata query and reporting interfaces
Version control and change management

Best Practice: Invest time in comprehensive metadata management - it pays dividends in warehouse usability and maintenance.

Summary

Key Takeaways

                    Data Warehousing Fundamentals
                    Data warehouses are designed for analytics, not transactions
OLTP handles operations; OLAP handles analysis
Subject-oriented, integrated, time-variant, and non-volatile



                    Architecture Choices
                    2-tier: Simpler, suitable for smaller implementations
3-tier: Industry standard, scalable and flexible
Staging area crucial for data quality and transformation



                    Data Organization
                    Data marts provide focused, departmental views
Metadata is essential for managing and understanding data
Proper architecture enables better decision-making



Questions?

References & Further Reading

Recommended Resources

Books:
- "The Data Warehouse Toolkit" by Ralph Kimball
- "Building the Data Warehouse" by W.H. Inmon
- "Data Warehouse Design: Modern Principles and Methodologies" by Golfarelli & Rizzi
Key Concepts to Explore:
- Star Schema and Snowflake Schema Design
- Dimensional Modeling Techniques
- ETL Best Practices and Tools
- Data Quality Management
- Real-time Data Warehousing
